VJ CP Retainer

What is VJ CP Retainer?

The VJ CP Retainer system helps mitigate wind uplift to pavers mounted on VersiJack® pedestal supports in exposed installations such as roof decks and balconies.

The discreet VJ CP Retainer system does not have exposed components that would affect surface trafficability. It is also versatile in accommodating various paver types and designs.

System components are manufactured from high-strength engineering plastics and supplied pre-assembled for simple installation.

*VJ CP Retainer is designed to be used together with VersiJack® height-adjustable pedestals.

MAKE AN ENQUIRYBROCHURESSPECS

System Components

The VJ CP Retainer system comprises a Base Plate (A) that clips onto the top of VersiJack®, four Corner Plates (B) that locate into the recesses of the Base Plate, and a Retaining Cross with a Fastening Screw (C+D) that threads into the centre of the Base Plate.

The Base Plate can be further secured onto VersiJack® with additional screws. The Corner Plates are held in position on the Base Plate by the Retaining Cross and the Fastening Screw.

System components are manufactured from high-strength engineering plastics and supplied pre-assembled for simple installation.

Installation

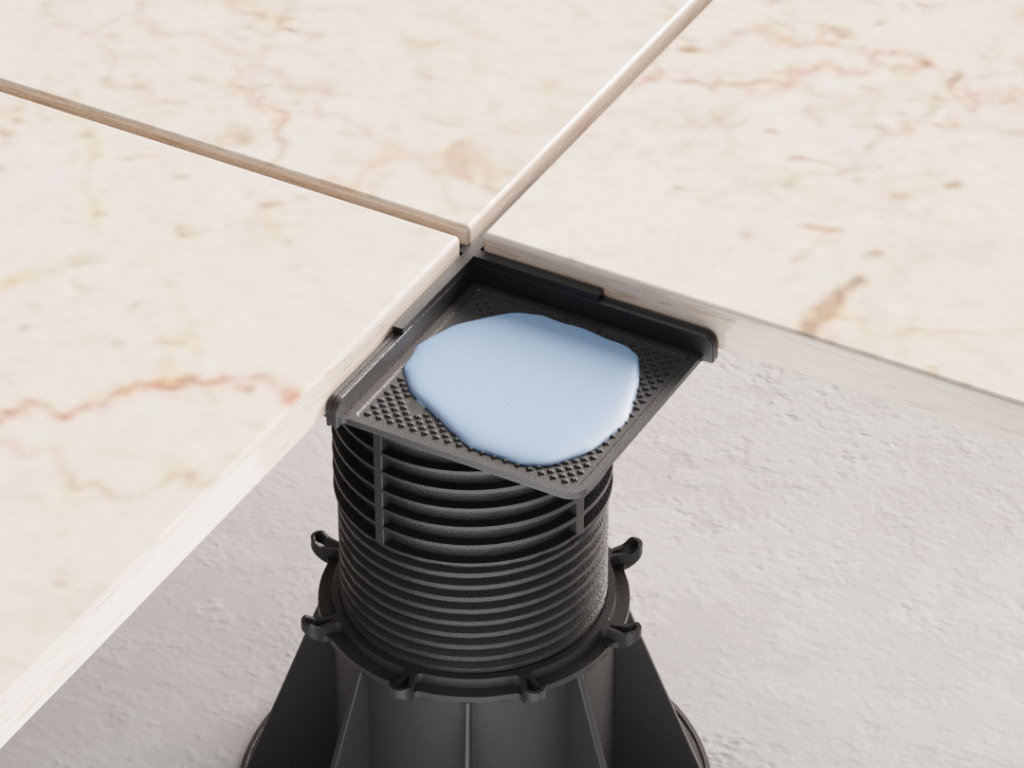

An adhesive suitable for robust bonding with polypropylene is applied to the Corner Plates while the Corner Plates are held in place by the Retaining Cross and Fastening Screw into the Base Plate. VersiJack® may be further bonded to the substrate for added security.

Additionally, the Corner Plates are shaped to prevent the adhesive from coming into contact with the Base Plate or VersiJack®. This enables individual pavers to be removed from the system as required for maintenance or inspection of utility services.

www.elmich.com

The VJ CP Retainer system helps mitigate wind uplift to pavers mounted on VersiJack® pedestal supports in exposed installations such as:

  • Roof Decks
  • Balconies
VJ CP Retainer
Material
-Base Plate & Corner PlatesEngineered plastic
-Fastening ScrewSUS 304
Dimensions
-Base Plate Ø171 mm
-Corner Plate r124 mm
-Fastening ScrewM3.5
Wind uplift resistance> 2.10 kPa
Adhesive
Wind uplift resistance> 2.10 kPa
Density1.44 g/cm3
Shore A hardness42
Elongation at break650%
Tensile strength3.30 N/mm2
Tear strength20 N/mm2
