VF Decking Support Pad

What is VF Decking Support Pad?

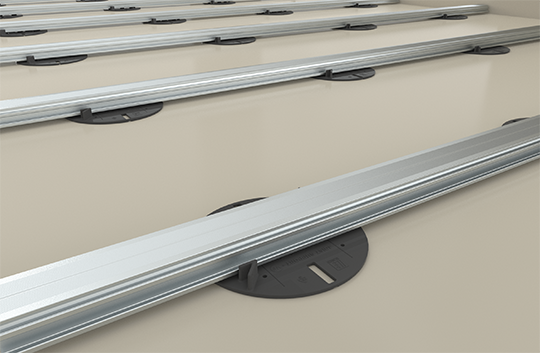

VF Decking Support Pad is a fixed height joist support for raised decking systems. It accommodates environments with low height constraints whilst providing air circulation and drainage underneath deck boards.

VF Decking Support Pads are connected to VersiFrame® joist substructure and restrict unintended movement during maintenance and everyday traffic.

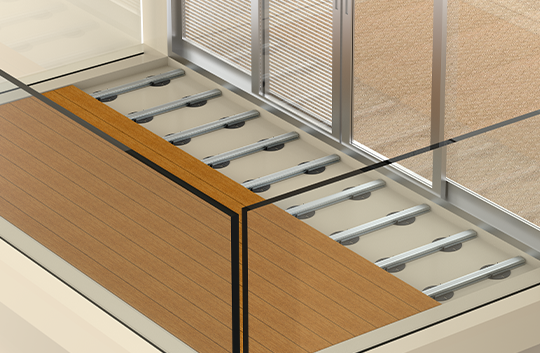

VF Decking Support Pads are used to elevate decking to create leveled surfaces while ensuring water drains freely underneath the deck boards.

VF Decking Support Pads are also available in TPE, which has superior properties in noise reduction, shock absorption, and traction to prevent slipping on sloped surfaces.

*VF Support Pad is a fixed, low-height raised floor installation. For a height-adjustable raised floor installation, see VersiFrame®.

MAKE AN ENQUIRYBROCHURESSPECS

VF Decking Support Pad is developed to be used with  VersiFrame®  aluminium joist system for:

  • Low-height decking installations
  • Protects underlying surface
  • Facilitates rapid drainage and air circulation
  • Quick and easy installation
  • Cost-effective system for raised decking
  • Also available in TPE for superior noise reduction, shock absorption and traction
Material PP/TPE
Height (mm) 4
Base diameter (mm) 165
Design span distance for joist support (mm) 400 – 600
Biological / Chemical resistance Unaffected by moulds and algae.
Resistant to corrosion

Perpendicular Joist Joiner
Perpendicular Joist Joiner allows one end of a joist to connect perpendicularly along the length of another joist.

Straight Joist Joiner
Straight Joist Joiner is a concealed joiner that connects 2 joists in a straight line.

SnapClip™
SnapClip™ concealed fastening system works with grooved-edge composite boards which can be removed and replaced easily.





Click here for brochure.

VP Extender
VP Extender is used as a fixed base extender for an additional 4 mm height.
